1-Series sewer and drain jetter
The powerful, lightweight petrol jetter for the smallest commercial vehicles.
The low-cost jetting machine with the high specification
- Pipe diameters up to 200mm
- 3000psi @8gpm (200 bar @35 lpm)
- Briggs and Stratton Vanguard EFi V-Twin Petrol Engine
- 250-litre (55 Gallon) Water Tank
The 1-Series petrol high-pressure van-pack is the ultimate low-cost solution for domestic drainage contractors and large-scale users alike. Through advancements in the manufacturing process, we have maintained the competitive price point to ensure the 1-Series remains one of the best-selling machines on the market. A fuel-injected Briggs and Stratton petrol engine offers enhanced performance and efficiency, delivering an industry-standard performance of 3000psi @8gpm for clearing pipelines with a diameter of up to 200mm. Thanks to a dry weight of 250kg, the machine can be installed in most small commercial drainage vehicles, while single-person operation is made easy with the inclusion of a push-button control panel and optional radio remote control.
Lightweight and compact drain machine
Due to a compact steel frame and dry weight of just 250kg, the 1-Series can be fitted in almost any small commercial van, such as the Ford Transit Connect or Volkswagen Transporter, while still maintaining room for additional tools and ancillary equipment. The jetter can also be supplied with a sophisticated 5-Channel radio remote system, reducing the overall size by eliminating the need for traditional operational levers. Installation and handling have been made easy with the inclusion of dedicated lifting points at the base of the unit.
Petrol-Powered Jetter Engine
Current and future emissions regulations have been a key factor in the development of the 1-Series. Powered by a Stage V-compliant Briggs and Stratton Vanguard 23HP V-Twin OHV petrol engine, the jetter offers maximum fuel efficiency and performance comparable to larger diesel machines. The 1-Series is also equipped with an engine revs reset function, large capacity jetting and filling reels and an anti-freeze valve as standard, features not usually available at this price point.
The 1-Series is suited to working in small spaces. It’s ideal for unblocking 4” drains and has nearly the same capability as larger machines but is much more economical.
Metro Rod is one of the country’s largest drainage franchises, with over 40 franchisees providing specialist reactive drain clearance and maintenance services across the UK. One of the larger franchises, Metro Rod (Chester) operates across The Wirral, Chester and much of North Wales, with Andy Guest equipment helping to deliver their strict health, safety, environmental and quality practices.
Impressed with the reliability, affordability and all-round performance of our jetting machines, the decision to choose Andy Guest's machines for the bulk of his fleet was easy for Managing Director Roy Dean: “We do a lot of housing association work and the 1-Series in the smaller van is suited to working in small spaces. It’s ideal for unblocking 4” drains and has nearly the same capability as larger machines but is much more economical.”
Roy Dean Managing Director | Metro Rod (Chester)
Single-person jetting operations
A unique push-button electronic control panel with an electric throttle makes the 1-Series easy to operate by a single person. Operators are also able to upgrade to an optional 5-Channel radio remote control or foot pedal due to the plug-and-play characteristics of the unit. The new Andy Guest radio remote offers improved bandwidth and reception range for use in the toughest conditions and is supplied with a charger, external antenna, transmitter and receiver unit.
Stack drain jetting systems
The 1-Series is available in a stack and split configuration, ideal for maximising the space and payload of multipurpose drainage vehicles. By vertically stacking the component parts, this system offers the same level of performance and specification as a conventional van-pack at less than half the width. Water tanks can be mounted separately, improving weight distribution and allowing other equipment to be mounted alongside the jetting machine.
Bespoke jetter configurations
As all jetting machines are manufactured in-house at our factory in West Yorkshire, we can offer a range of bespoke configurations for customers that require non-standard equipment. Modifications can include the reframing and reconfiguration of machines, and the installation of acoustic covers to reduce engine noise. We can also provide a complete operation-ready drainage van with a range of storage solutions and ancillary equipment.
Specification & Documentation
Default Specifications
| Pipework Diameter | Up to 200mm |
|---|---|
| Performance | 3000psi @8gpm (200 bar @ 35 lpm) |
| Water tank | 250 Litres (55 Gallons) |
| Engine | Briggs and Stratton Vanguard EFi V-Twin Petrol Engine |
| HP Pump Type | 23HP (17.2kW) |
| Engine Cooling | Triplex Plunger Pump |
| Engine Power | Air-Cooled |
| Run Dry Protection | Standard |
| Frost Protection | Anti-Freeze Valve |
| HP reel | Manual |
| Hose Guidance | Not Included |
| Hose | 60 Metres 3/8” Lightweight Jetting Hose |
| Reel Arrangement | Fixed Hose Reel |
| Filling Hose | 25m Reel |
| Control Box | Push-Button Controls |
| Pressure Relief System | Unloader Valve |
| Remote control | 5-Channel Radio Remote Control (Optional) |
| Construction | Compact Mild Steel Construction, Powder Coated |
| Accessories Included | 2 Standard Nozzles, User Manual, Leader Hose |
| Approx. Dry Weight | 250kg |
| Approx. Max Weight | 500kg (with Standard 250ltr Water Tank) |
| Dimensions (mm) | 1050mm D x 1130 W x 1020 H (with Standard Water Tank) |
| Fuel Tank Capacity | 15 Litres |
| Base Vehicle Suitability | Ford Transit Connect, Vauxhall Combo/Vivaro, Mercedes Benz Citan, VW Caddy/Transporter, Renault Trafic, Peugeot Expert |
Optional specifications
| Remote Control | 5-Channel Radio Remote Control |
|---|---|
| Additional Hoses | Lightweight Jetting Hose or Leader Hose |
| Nozzles | Range of Nozzles and Nozzle Kits |
| Accessories | Safety and Dry Shut Lances, Suface Cleaning Equipment and Industrial Cleaning Accessories |
Product documentation
| Download catalogue | 1-Series Drain jetter Brochure (PDF, 3.857 MB) |
|---|

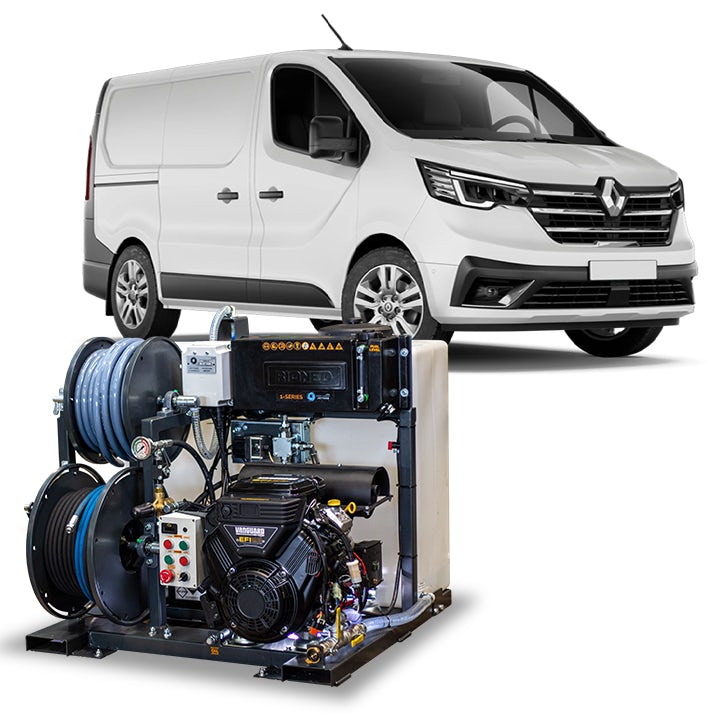

1-Series Finance
The compact and lightweight 1-Series van-pack jetter features an industry-leading fuel-injected petrol engine and triplex pump to offer optimal performance and efficiency. A multi-purpose jetter ideal for both drainage and industrial cleaning.
| Jetter | Performance | Weekly* | Monthly* |
|---|---|---|---|
| 1-Series Petrol | 3000psi@ 8gpm | £30 | £130 |
| 1-Series Petrol with Remote | 3000psi@ 8gpm | £41 | £177 |
| Jetter | Van | Weekly* | Monthly* |
|---|---|---|---|
| 1-Series Petrol | Renault Trafic LL30 DCI 150 | £138 | £599 |
Other vehicles are available, though lead times may vary.
1-Series van-pack case studies
Van-Pack Jetting Machines
Starting your Andy Guest journey with a 1-Series petrol jetter?
Contact us today and we’ll help develop the best 1-Series configuration to suit your requirements. We can also help with bespoke vehicle conversions, equipment finance, servicing, and much more…
